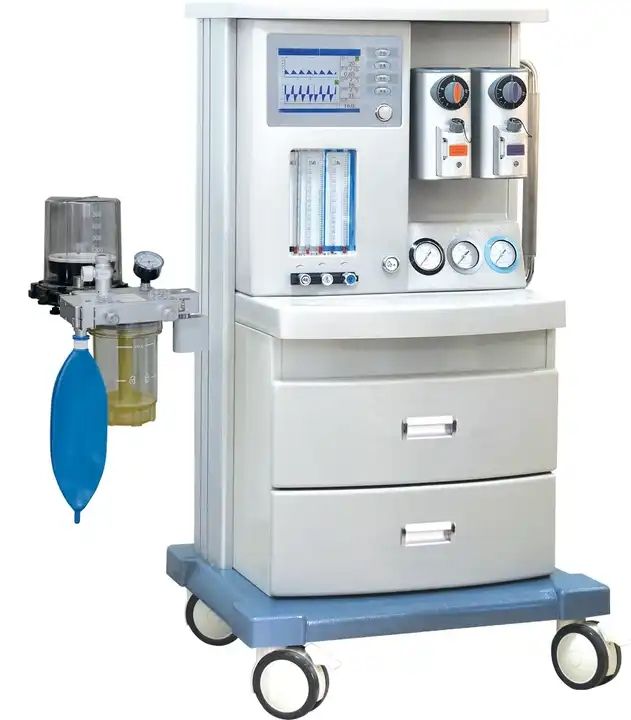

JINLING 850 anesthesia machine & accessories

Specifications
Anesthesia ventilator
* Pneumatically driven electronically controlled system

* Built-in ventilator, 10.4” LCD display

* With 1 patient circuit for adult (Optional:patient circuit for children)

* 5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;

* Two vaporizers,Enflurane/Isoflurane/Sevoflurane; (Optional: Halothane)

* Oxygen Flush: 25~75 L/Min;

* Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh

* Tidal Volume: 0~1500 mL;I:E: 8:1~1:10

* Respiration Frequency: 1~99bpm;

* PEEP: 1~10 hPa;

* Ptr: -10~10 hPa;

* CO2 absorber capacity: 1 kg

* Lung compliance: ≤ 30mL/kPa;

* IMV frequency: 1~12bpm

* Inspiratory Plateau: 0~1S;

* O2 Concentration: 21%~100%

* Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery low power

Jinling 850std ICU hospital clinic portable anaesthetic machine,anesthesia machine

* Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect.
* High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%.
* Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor.
* Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.
* Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C.
* Multi-parameter Patient Monitor: Optional.
