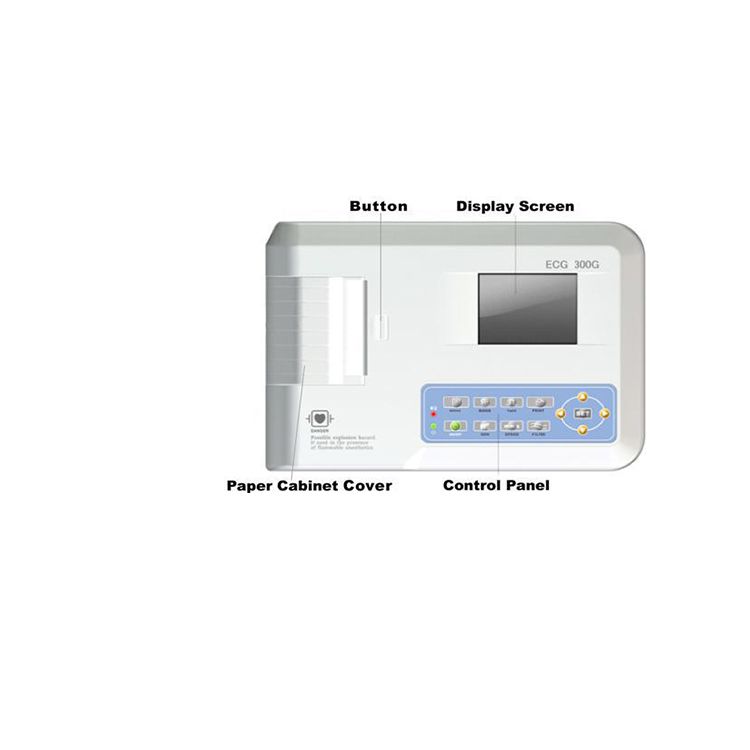

Single channel ECG machine 12 lead ecg

Inquire Now Next Product

Features Detailed introduction Certifications Our factory Main Markets FAQ Customer Reviews

FEATURES

Features:

1. High-resolution thermal printing array system.

2. Frequency response is as high as 150Hz.

3. Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status.

4. High resolution digital filter inhibits baseline drift without affecting ECG waveform.

5. One-touch operation.

6. Concept of floating input circuit meets IEC safety standard.

7. Rechargeable battery supporting more than 50 patient examinations.

8. Lead Standard: 12 leads.

Detailed introduction

Input Circuit	Floating; Protection against Defibrillator effect
Lead	Standard 12 Leads, Lead change automatically
Patient Current Leakage	<10μA
Input Impedance	≥10ΜΩ
Calibrating Voltage	1mV±3%
A/D Conversion	12 bit
Frequency Response	0.05Hz~150Hz (IEC)
Time Constant	>3.2seconds
CMRR	>80dB >100dB (with filter)
EMG Filter	35Hz (-3dB) / 25Hz (-3dB)
Sensitivity	1/2, 1, 2 (cm/mV), Conversion Deviation≤5%
Recording System	Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec )
Paper Speed	25, 50mm/s±3%
Recording Paper	50mm,20m, high-speed roll
Input Circuit Current	≤50nA
Safety Standard	IEC class I, type CF
Power Supply	AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery
Skin Voltage Tolerance	±300mV
Noise Level	<15uVp-p
Dimensions	310mm×230mm×70mm
Dimension of Packing	400mm×280mm×160mm
Weight	2.75kg

Standard Configuration:

1SET * ECG machine
1 SET* Patient Cable
1 Piece* Power Cable
1 piece*Power charger
1 roll* Printing Paper
1 set * Limb Electrodes(4pcs/set)
1 set* Chest Electrodes(6pcs/set)
1copy* Operation Manual

Certifications

Our factory

Main markets

FAQ

Q: Is it all right to make customers’own brand name?

That’s all right to make your own brand name.

Q: How does your factory do regarding quality control?

We have standard QC system to control the quality.

Q: Whats your payment terms?

We accept payment by T/T, Western Union, Paypal, L/C, Trade Assurance etc.

Q: How long time warranty do you have?

We offer two-year warranty for the main unit and and accessories. And we have the professional service engineer to respond your service request within 24h.

Q: Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

Q: Can you do OEM?

Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.

Q: How can get the shipping cost?

You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.

Q: Shipping way:

By express, by air, or by Sea

Q: Is it certificated?

Yes, it is with CE certificated.
