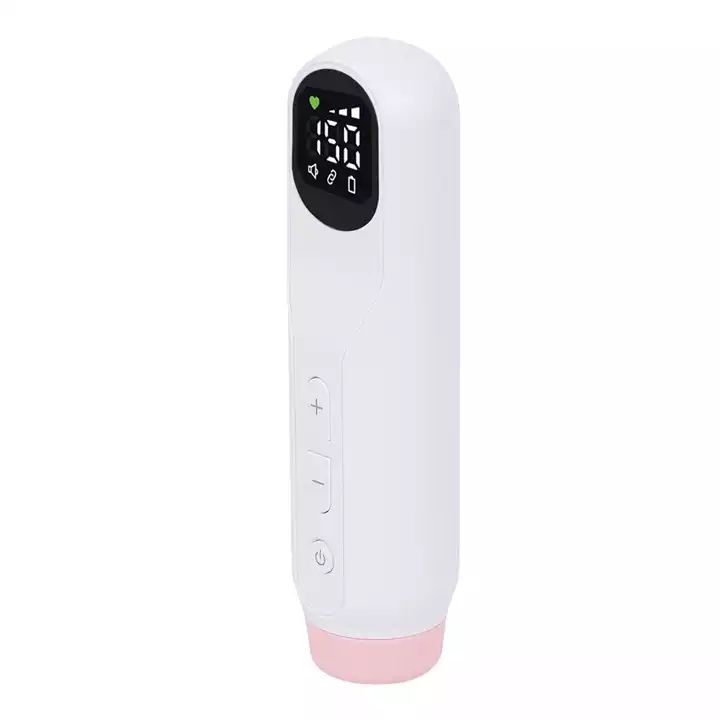

Integrated doppler fetal heart mini fetal doppler

Pocket Fetal Doppler adopts Doppler technology in designing, it is a hand-held fetal heart rate detection device. Measured FHR value and waveform are displayed on the LCD screen. With easy and convenient operation, it can be used in hospital, clinic for daily self-check by pregnant woman, realizing early monitoring and care for life.

Inquire Now Next Product

Introduction Detailed introduction Certifications Our factory Main Markets FAQ Customer Reviews

INTRODUCTION

Function

Pulse wave Doppler technique

Fetal heart value display

Fetal heart beat indication

Fetal heart signal strength indication

Rechargeable lithium battery

Intelligent noise reduction,hi-fi speaker audio output

Auto shutdown after no signal inputing for 60s

Detailed introduction

Performance

Safety cassification: interally powered equipment, type CF applied part

Display: LED screen

FHR measurement and display range: 50 BPM ~ 240 BPM (BPM: beats per minute)

Resolution: 1 BPM

Accuracy;土2 BPM

Rated working voltage: DC3.7V

Battery type: 3.7V lithium battery

Degree of protection against ingress ofliquid: IP22 Probe

Nominal Frequency: 2.5 MHz

Working Frequency: 2.5 MHz土109%

Negative Peak Sound Pressure:p_< 1 MPa

Output Beam Intensity: lob < 20 mW/cm2

Spatial-peak Temporal-average Derived Intensity: Ispta < 100mW/cm2

Ultrasonic Output Power: P < 20 mW

Working Mode: Pulse wave Doppler

Effective Radiating Area of Transducer: 490 mm2士15%

Accessories

Product specification 1pc

Type-C cable 1pc

Physical characteristic

Dimension: 40mm(L) x 40 mm(W) x 152 mm(H)

Weight: About90 g

Certifications

Our factory

Main markets

FAQ

Q: Is it certificated?

Yes, it is with CE certificated.

Q: Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

Q: Shipping way:

By express, by air, or by Sea

Q: How long time warranty do you have?

We offer two-year warranty for the main unit and and accessories. And we have the professional service engineer to respond your service request within 24h.

Q: How can get the shipping cost?

You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.

Q: Whats your payment terms?

We accept payment by T/T, Western Union, Paypal, L/C, Trade Assurance etc.

Q: How does your factory do regarding quality control?

We have standard QC system to control the quality.

Q: Can you do OEM?

Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.

Q: Is it all right to make customers’own brand name?

That’s all right to make your own brand name.
