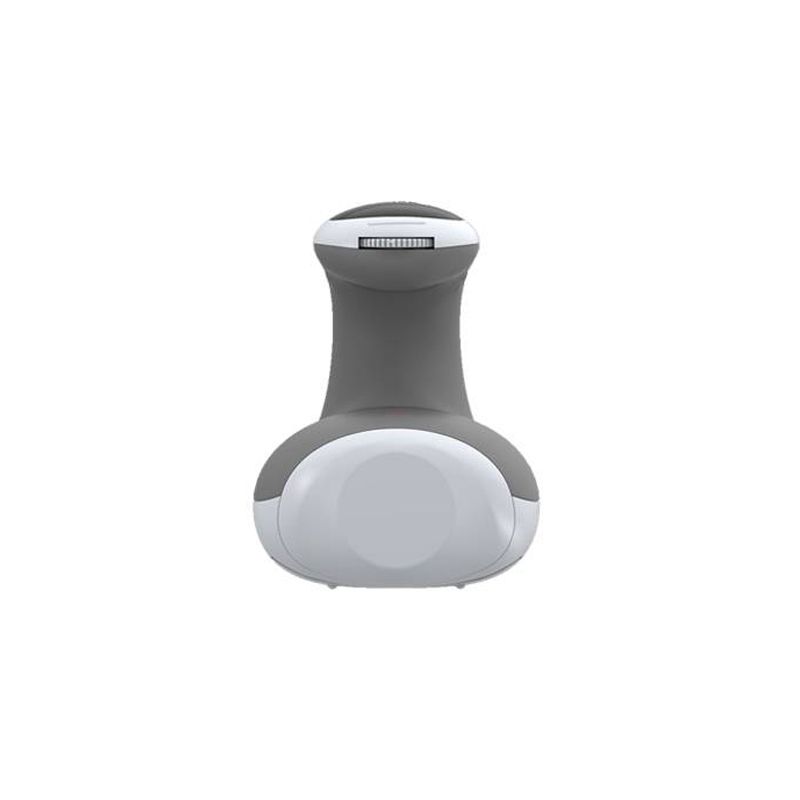

Probe body integrated baby fetal doppler

Inquire Now Next Product

Introduction Detailed introduction Certifications Our factory Main Markets FAQ Customer Reviews

INTRODUCTION

Sprout Concept

The design concept of this product comes from “Sprout”, Our designer give this product a cute and vivid image, just like a fetus that thrives in mother’s womb.

Ergonomic Design

We integrate main unit and probe humanely, so that pregnant woman can complete the operation with one hand, and then free up the other hand to provide more support and protection to their body.

Accurate Detection

The high sensitive doppler probe and DSP calculating techniques, provides accurate fetal heart rate detection.

Clear Display & Double Audio Ports

An LED display provides clear readings to user at the most suitable angle, and double audio ports allow the user to share the most wonderful sound.

Detailed introduction

Display	LED
FHR Performance	Integrative Sensitivity: ≥90db
	FHR Measuring Range: 50~210BPM
	Accuracy: ±2BPM
Ultrasound Probe	Working Frequency: 2.5MHz±15%
	Working Mode: Continuous Wave Doppler
	Spatial-peak Temporal-peak Intensity: <21.7kPa
	Ultrasonic Output Intensity: <10mW
	Effective Radiating Area of Transducer: 157mm²±15%
Acoustic Parameters	IOB: < 20mW/cm²
	P-: <1MPa
	ISPTA: < 100mW/cm²
Measuring Time	1 minute
Working Environment	Temperature: +5℃~+40℃
	Humidity: 15%~85%
	Atmospheric Pressure: 86kPa~106kPa
Transport and Storage Environment	Temperature: -20℃~+55℃
	Humidity: 10%~93%
	Atmospheric Pressure: 86kPa~106kPa
Safety Type	Internal power supply, Type BF applied part
Product	Product Size: 10472.598 mm
	Net Wight: 97g±5g(excluding batteries)
	Unit Package: 13513591mm
Carton	Carton Size: 425422382mm
	QTY/Carton: 30pcs
	G.W./Carton: 4.5KG

Certifications

Our factory

Main markets

FAQ

Q: Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

Q: Is it all right to make customers’own brand name?

That’s all right to make your own brand name.

Q: Can you do OEM?

Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.

Q: Is it certificated?

Yes, it is with CE certificated.

Q: How does your factory do regarding quality control?

We have standard QC system to control the quality.

Q: How can get the shipping cost?

You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.

Q: Shipping way:

By express, by air, or by Sea

Q: How long time warranty do you have?

We offer two-year warranty for the main unit and and accessories. And we have the professional service engineer to respond your service request within 24h.

Q: Whats your payment terms?

We accept payment by T/T, Western Union, Paypal, L/C, Trade Assurance etc.
