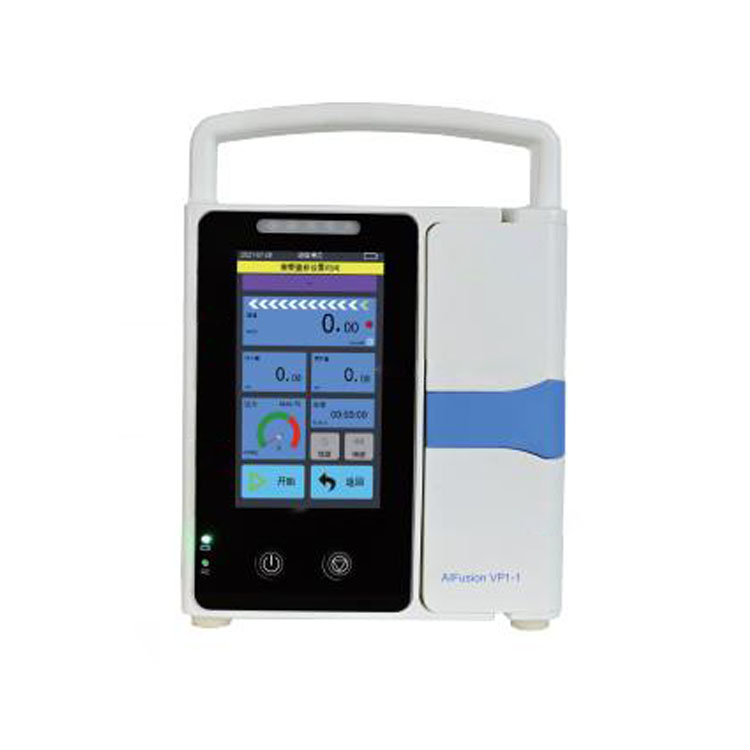

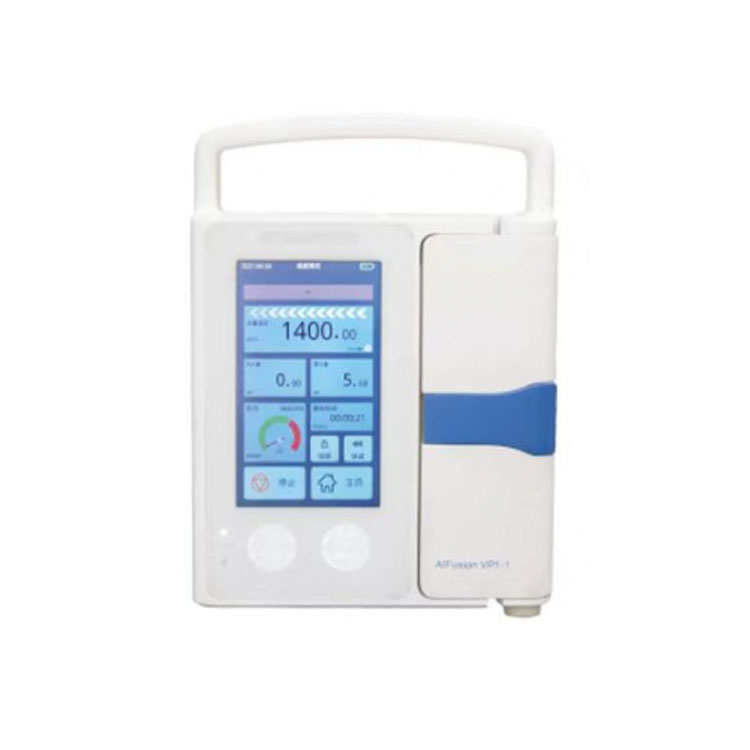

AIFusionVP1-1 Medical infusion pump 4.3 inch touch screen infusion pump

Product Advantages: Three Core Information
1, The mechanical accuracy error is less than+0.5%; The infusion accuracy error is less than+3%, leading the domestic commonly used competitors
2, The innovative capacitive 4.3 inch super large touch screen can be operated with gloves, with a sensitive and smooth touch, scientific menu layout, and simple and easy to use operation
3, Adopting high-precision pressure sensing technology and visual alarm, it is convenient for infusion and worry free for doctors and patients.

Infusion speed:
Infusion flow rate setting range: 0.10~1500.00 mL/h Flow rate step:
a) When the flow rate is set within the range of (0.10~99.99) mL/h, the step is 0.01 mL/h;
b) When the flow rate is set within the range of (100.00~999.90) mL/h, the step is 0.10 mL/h;
c) When the flow rate is set within the range of (1000.00~1500.00) mL/h, the step is 1.00 mL/h;

High infusion accuracy
Under standard testing conditions, the infusion accuracy error should be ≤ 3.0%
*Battery working time: Continuous operation at a flow rate of 25mL/h, with a discharge time of no less than 10h when using a fully charged new battery
*The product has the function of selecting infusion mode, which can select speed mode, weight mode, time mode, and intermittent administration mode. Historical records can be stored for at least 1500 records.
4.3 inch LCD screen, resolution: 800 * 480, touch operation function.
Blocking pressure
The blocking pressure range of the injection pump is adjustable, and the parameter range is specified in Table 1
Within the error range of 75mmHg+50mmHg; Other gears (150mmHg~975mmHg) with an error of+20% or+125mmHg, whichever is greater
