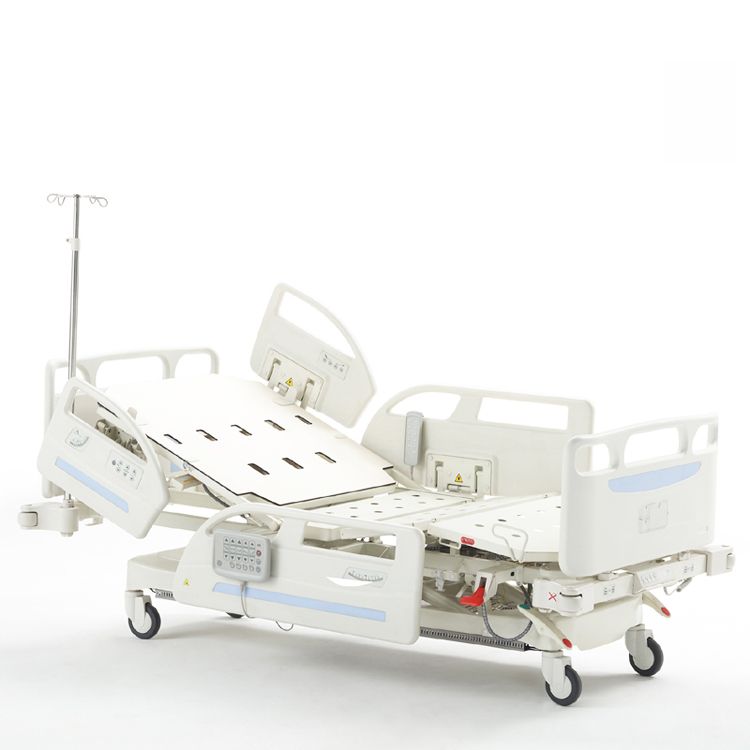

DA2 electric remote control hospital bed

Inquire Now Next Product

Introduction Detailed introduction Certifications Our factory Main Markets FAQ Customer Reviews

INTRODUCTION

Standard configuration
1.Split Side Rails: The 4pcs PP side rails provide the patient with protection against falls.
2.Removable Mattress Platform: Easy removable and easy for sterilization. The mattress 3.H/F Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.
4.Protective corner bumpers
5.Lifting pole or infusion stand holes
6.Mattress holders
7.Angle Indicator: The angle gauges of side rails in the head and foot direction show the angles of the backrest and the tilt of the whole bed mattress platform respectively. 8.Extension of the bed: The integrated bed extension adjusts the mattress platform length to the individual patient’s height.
9.Four 125mm castors with central locking system
10.Manual CPR: The manual CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.

Detailed introduction

Technical features

Outer dimensions (Side rails up): L2220*W1060mm(±10mm)

Mattress platform: L1960*W900mm(±10mm)

Bed height: H470-790mm(±10mm)

Maximum backrest: ≥70°

Maximum knee rest: ≥25°

TR/ATR: ≥12°

Height of side rails(above mattress platform) : 380mm(±10mm)

Safe working load: 200kgs

Electric parameters

Power supply: 220V/110V, 50HZ / 60Hz

Maximum input: 1.6A,450VA

Protection against water and dust: IPX4

Equipment classification: Class II

Level of protection against injury from electrical current: Applied part type BF

Electric motor operation mode (load factor): 10%, max2min/18min

Certifications

Our factory

Main markets

FAQ

Q: How long time warranty do you have?

We offer two-year warranty for the main unit and and accessories. And we have the professional service engineer to respond your service request within 24h.

Q: How can get the shipping cost?

You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.

Q: Whats your payment terms?

We accept payment by T/T, Western Union, Paypal, L/C, Trade Assurance etc.

Q: How does your factory do regarding quality control?

We have standard QC system to control the quality.

Q: Can you do OEM?

Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.

Q: Shipping way:

By express, by air, or by Sea

Q: Is it all right to make customers’own brand name?

That’s all right to make your own brand name.

Q: Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

Q: Is it certificated?

Yes, it is with CE certificated.

Customer reviews
