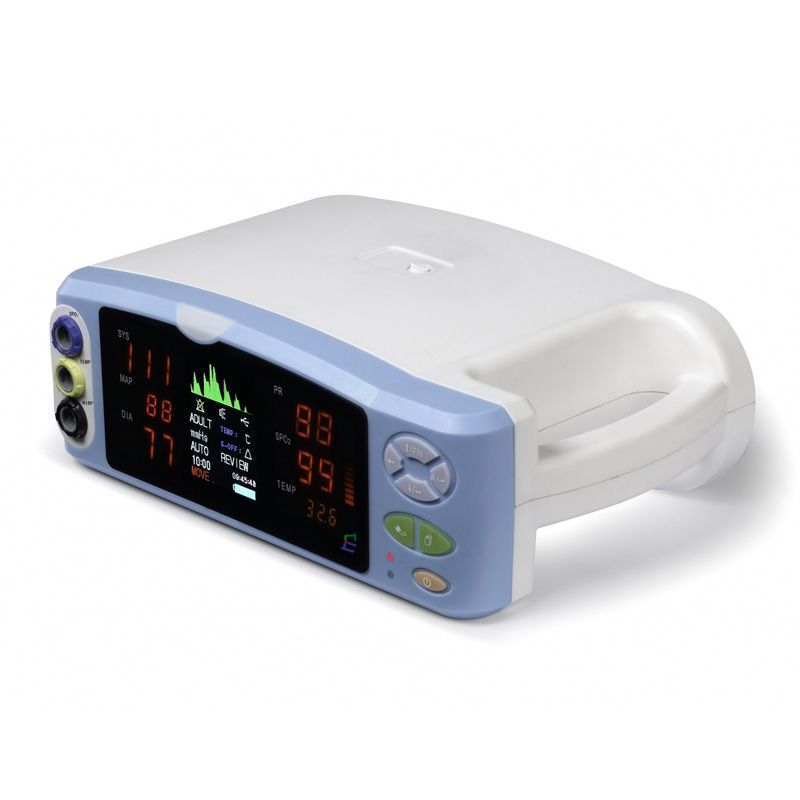

JERRY-III vital signs patient monitor

Specification:

1. General

Monitoring Parameters: NIBP,PR,SpO2 and TEMP

Signal sockets: NIBP socket, SpO2 socket and TEMP socket, adapter socket and PC communication socket

Display screen

Type: 240 × 320 dot matrix color TFT LCD screen and

LED screen

LCD Display area: 44mm×59mm

LED Display area: 167mm×79mm

Size: 280mm×190mm×100mm

Net Weight: 1000g（not include probes and adapter）

2. Features

PLETH: The oximeter can display PLETH waveform

Audio and visual alarm: The speaker sounds the alarm, the parameter’s measurement flashes on the screen, sensor off alarm and LED flashes on the monitor.

Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.

Power saving: The monitor has auto power off function.

Data storage: Storage/Review trend data up to 3888 groups, data save time being set freely, The saved data will never be lost even if the oximeter is powered off.

3. Electrical specifications

AC power adapter

Input: AC100V～240V, 50/60Hz, 0.7A

Output: DC 5V, 2A

Internal battery

Type: 2800mAh/3.7V Li rechargeable battery

Run Time: 5 hours of stand-by time with a full battery

Recharge time: 8 hours

Charge(discharge) ≧1000times.

4. Environment

Temperature

Operation: 0°C ~50 °C

Transportation and storage: -20°C ~60 °C

Humidity

Operation: 10%~95 %( non-condensing)

Transportation and storage: 10%~95 %

(non-condensing)

Altitude

Operation: 86kPa~106 kPa

Transportation and storage: 50kPa ~106 kPa

5. Parameter Specifications

NIBP

Patient: Adult and Pediatric

Measurement method: Oscillometric

Measurement mode: Manual, Auto, STAT

Measurement unit: mmHg/kPa selectable

Measurement type: SYS, DIA, MAP

Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,45 and 60Min

Measuring period in STAT mode: 5 Min

Range:Adult: 30mmHg~255mmHg   Pediatric: 30mmHg~160mmHg

Over-pressure protection;Adult: 300mmHg   Pediatric: 220mmHg

Resolution:1mmHg

SpO2

Patient: Adult, child

Range: 0～100%

Resolution: 1 %

Accuracy: ±2 %(90～99%),

±3 %(70～89%),unspecified (<70%)

PR

Range: 30~250bpm

Resolution: 1bpm

Accuracy: ±1bpm

TEMP

Channel: 1

Input:Body surface thermal-sensitive resistor temperature sensor

Measurement Unit: ℃/°F selectable

Range: 0～50℃

Resolution: 0.1℃

Accuracy: ±0.2℃
