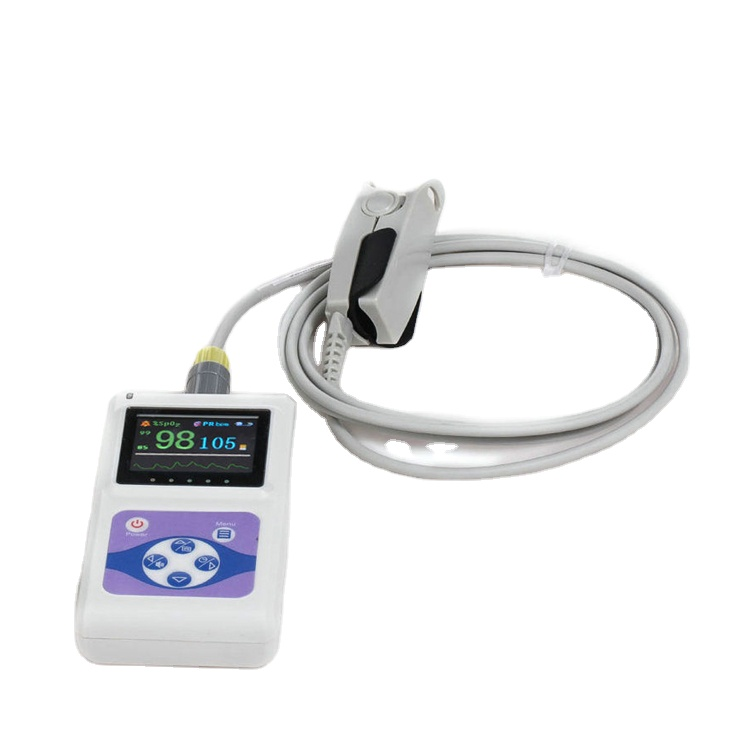

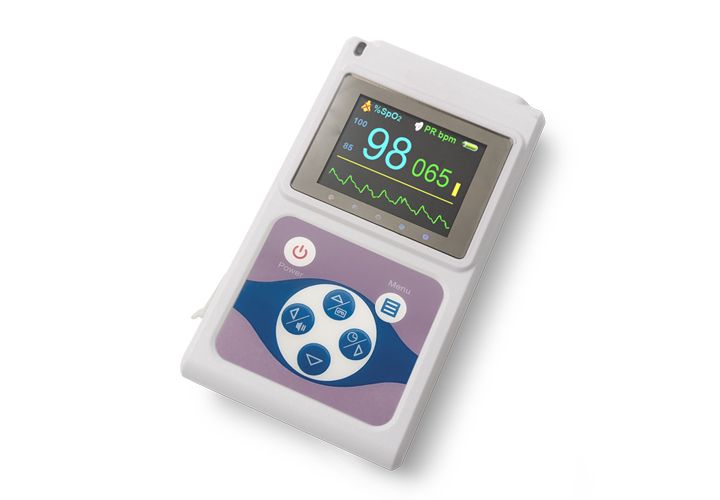

CMS60D Handheld OLED Pulse oximeter

Introduction

The CMS60D Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology in accordance with Capacity Pulse Scanning & Recording Technology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for being used in family, hospital, oxygen bar, community healthcare and physical care in sports, etc. (It can be used before or after exercise, but not recommended to use during exercising).

Inquire Now Next Product

Introduction Features Certifications Our factory Main Markets FAQ Customer Reviews

INTRODUCTION

Performance

Display mode: 1.77"color screen

Screen resolution: 128*160

SpO2 measurement range: 0 % ~ 100 %(resolution: 1 %)

Accuracy: 70%~100%: ±2%

0%~69%: unspecified

PR measurement range: 30 bpm~250 bpm(resolution: 1 bpm)

Accuracy: ±2 bpm or ±2 %, whichever is greater.

Accuracy under low perfusion: low perfusion 0.4 %, SpO2 accuracy: ± 4 %; PR accuracy: ± 2 bpm or ± 2 %, whichever is greater.

Light interference: compared to the values measured in normal condition and ambient light condition, the deviation: ≤ ± 1 %.

Power consumption: ≤ 100 mA

Working voltage: DC 3.0 V

Power supply: two AA batteries

Safety class: internally powered equipment, type BF applied part

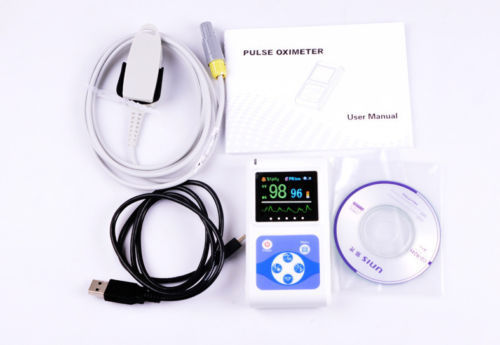

Accessory

A user manual

A data line

A SpO2 probe

Bluetooth adapter(Optional)

Other SpO2 probes(Optional)

FEATURES

Features

1.Display of SpO2 value.

2.Display of PR value and bar graph.

3.Display of pulse waveform.

4.With function menu.

5.Adjustable screen brightness, adjust the volume of sound.

6.PR sound prompt;Sound prompt

7.Review function.

8.Clock function.

9.Battery power indication

10.Low-voltage indication: the low power indication symbol appears when the voltage is too low to work.

11.Data storage function, stored data can be uploaded to computer

12.Data transmission in real-time.

13.The stored data can be wirelessly uploaded to a computer(Bluetooth equipment)

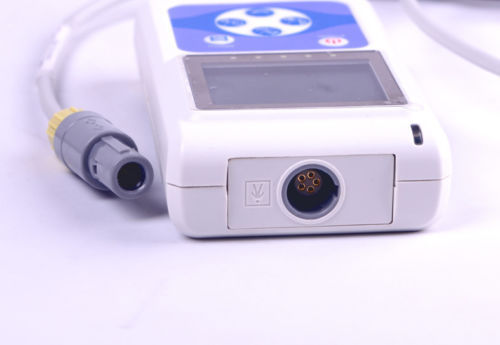

14.External SpO2 probe can be connected.

Certifications

Our factory

Main markets

FAQ

Q: How does your factory do regarding quality control?

We have standard QC system to control the quality.

Q: Is it all right to make customers’own brand name?

That’s all right to make your own brand name.

Q: Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

Q: How can get the shipping cost?

You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.

Q: Shipping way:

By express, by air, or by Sea

Q: Can you do OEM?

Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.

Q: Is it certificated?

Yes, it is with CE certificated.

Q: Whats your payment terms?

We accept payment by T/T, Western Union, Paypal, L/C, Trade Assurance etc.

Q: How long time warranty do you have?

We offer two-year warranty for the main unit and and accessories. And we have the professional service engineer to respond your service request within 24h.
